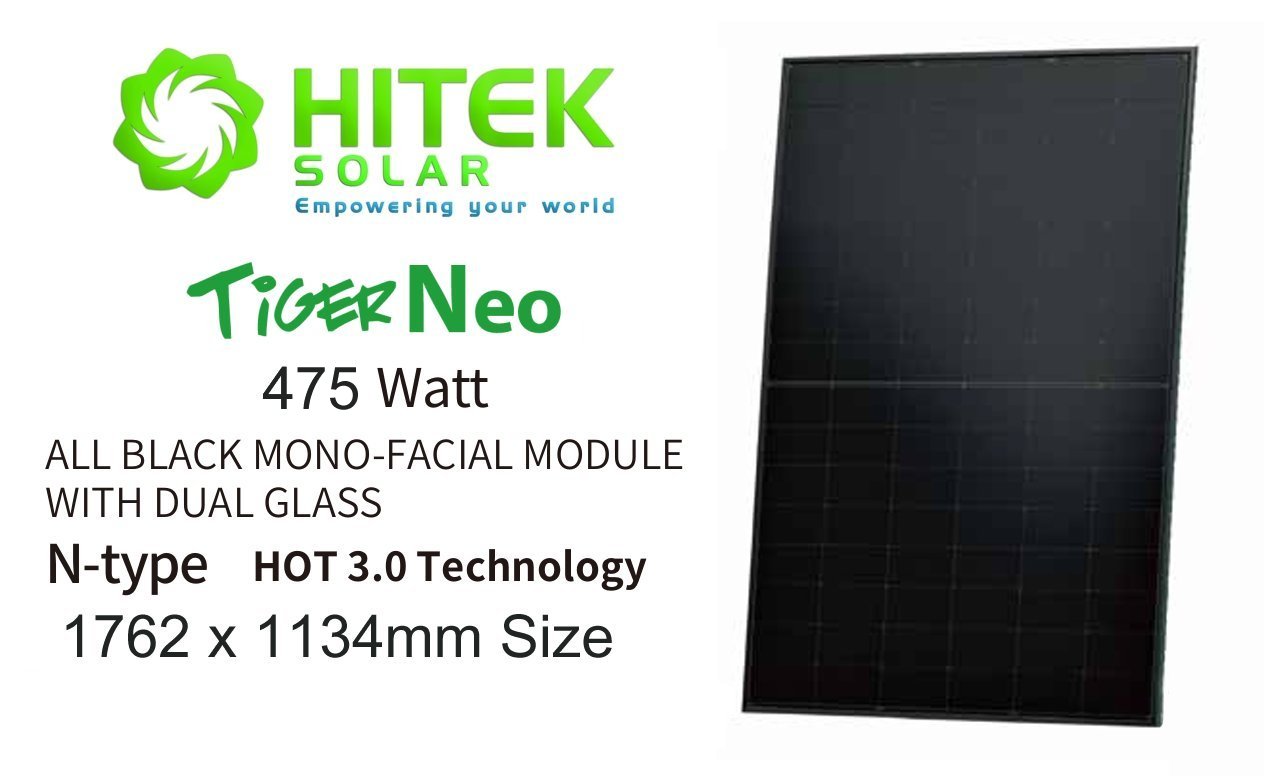

475w N-Topcon MONO Facial ALL Black Solar Panel meeting NZ / Australia and TUV International standards offering ultra high efficiency for all NZ conditions. Offered by Hitek Solar NZ, manufactured by Jinko.

This listing is for a 10 panel set (not an individual panel) and no mounting items are included or any other items, just the 10 bare panels.

If you need 6 or 8 or 12 or 14 or 16 or 18 or 20 panels instead please contact us directly for a price for the qty you need.

***Note: Limited stock, please check with us for stock level before placing an order.

• This panel runs an ultra high 23.77% efficiency rating.  Iideal for people with limited space available.

• ENHANCED LOW LIGHT COLLECTION
  Ultra Low Light Collection ability which has resulted in greater light collection at all times especially cloudy / overcast days during autumn, winter, spring conditions  compared with conventional Mono panels.


• HIGHER EFFICIENCY + MORE POWER
  Increase in panel conversion efficiency means more power in the same space / area, while still remaining with the same installation + mounting + electrical wiring costs. This gives you more power for your investment.
  Lower Temp Co-Efficient, giving more power on a hot sunny day compared with std mono / perc mono panels.


• Front 1.6mm solar glass + Rear 1.6mm solar glass for extra strength.
• Perfect for Grid Tie On-Grid or Off-Grid setups.
• Using latest high efficiency technology.


• LEADING VISUAL APPEAL
  Better Visual Aesthetics (no silver bus-bar lines to detract from the visual look of the black panel) compared with conventional panels.  Most Full Black Panels still have silver lines running up and down the front of the cells in the panel, whereas these panels don't hence we they offer a better more uniform All / Full Black look for those who really care about the visual look of the panels on their site.


• Can clip on our Add-On Shade Optimization Upgrade Module also (as an option at time of purchase or down the track, to reduce shading loss issues on any panels that may need this extra feature).


---------------------------------------------------------------------------------------------------

Panel Voltage / Current Specs:
VMP Voltage: 30.94v
VOC Voltage: 36.57v
IMP Current: 15.03A
ISC Current: 15.81A
Temp Coefficient of Max Power: -0.36% per degree C.
1762x1134mm size  (physical panel size).
Panel Efficiency: 23.77%  (at panel level, cell level is more than 25.8%).
HOT 3.0  N-TopCon Technology
STC:l000 W/m' irradiance, 25"C cell temperature
Dimensions: 1640 x 992 x 35  (35mm Frame size)
Weight: 21.72Kg (per panel)

25 years physical / product warranty (by Jinko direct)
30 Year Linear Cell Power Output Warranty (by Jinko direct) meaning the cells in the panel will still be capable of reaching more than 82% power output at 30 years of running.  This is one of the best warranties in the industry.

--------------------------------------------------------------------------------------------

No pickup options available, paid freight delivery options only available.
Please be sure to contact us to get a heavy transport freight quote before placing order for these panels.
