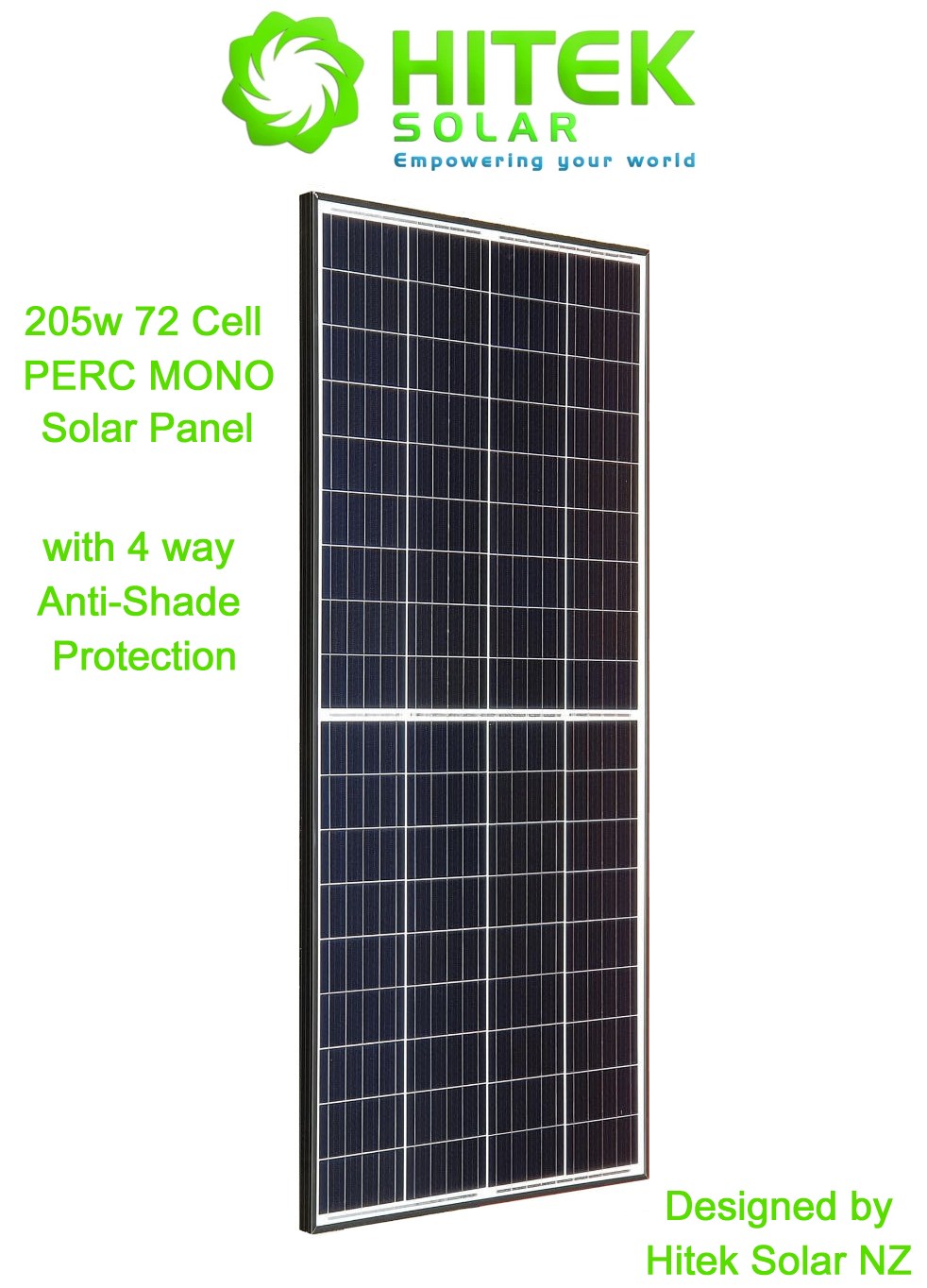

205w PERC MONO Solar Panel (4 Way Anti-Shading Protection - Latest Technology for 2020)
205w PERC MONO 5BB Solar Panel - 72 Cell Half Cut PERC MONO Technology
Note: Now been replaced with our new 215w version (same physical size but even higher efficiency). Please see our 215w panel listing instead if you were interested in this panel.
High Energy Density + Highest Efficiency PERC MONO panel in a small form factor for specialist applications where large size traditional panels won't fit.
With built in mirror reflectors in the rear of each of these cells in the panel for BEST Low Light / Overcast / Raining Day production along with best early morning and late afternoon / early evening production compared with standard MONO and POLY cell panels, the PERC MONO panels beat the other older technology panels hands down in ALL conditions.
You could say that these PERC MONO panels are like the Best Ultimate MONO cell panel on NOS !! They really do produce a noticeable amount more power (in real NZ conditions) as our own Tigo Energy NZ test site shows from the live + recorded data (tested back to back against other top brand standard panels).
- With Anti-Reflective Self-Cleaning Glass technology.
- Perfect for Small Off-Grid DIY Projects.
- Using latest technology 5BB (5 Bus Bar) 72 Cell High Efficiency Half Cut Full Square PERC MONO cells (Ultra High 22.6% Cell Efficiency).
- Approved for use near Salt Environments such as RV, Caravan, Boat / Marine, Trailer, Motorhome etc.
- 4-Way Anti-Shade Protection within the panel (the only panel of this size / wattage in NZ today with this anti-shade ability) within a small panel.
Fitted with High Quality Split Junction Box and 2 x Bypass Diodes + the top half of the panel operates independently from the bottom half of the panel, so if there's any shading on the top half then this does NOT affect the bottom half output (and vise versa also).
This panel has 4 Way Anti-Shade Protection, unlike traditional 36 cell panels which where you cover 1-2 FULL Cells (totally shaded) the entire panel output would drop to 0-5% output power, with this panel you avoid this issue.
For people who are mounting this panel in a situation where shading can't be avoided and multiple panels are being used we also have our separate Clip On Shade Optimizer available (separately) that can clip onto these panels to provide further Anti-Shade Optimization and to further reduce shading losses (especially if you were using series wiring between multiple panels).
1520mm long x 685mm wide (only slightly larger than a standard 180-190w 36 cell panel) but with greater real world power output ability (especially in low light conditions such as cloudy, overcast or rainy days etc). Perfect if you only have a very limited roof top space and want maximum solar power output !!
Yes you can run 2 of these panels together to give 410w, or 3 of these panels together to give 615w or 4 of these panels together to give 820w of output power (often more than you could achieve using larger 300-370w panels).
This model panel was designed exclusively by Hitek Solar NZ and we are the only company in NZ offering this advanced high energy density small form factor panel. Watt for watt this panel produces more total daily output power than a standard mono or poly 250w panel (just to put it into perspective). This panel will produce MORE power per day than ANY other panel of this same physical size available available in NZ, and in turn a noticeable amount more power than any standard 36 cell 180-200w solar panel available in NZ today also thanks to more advanced internal technology and an ultra high cell efficiency with greater reflectivity collection ability than standard full cell PERC MONO panels.
Current at PMax (Imp): 9.73A
Voltage at PMax (Vmp): 21.06V
Short-Circuit Current (Isc): 10.39A
Open-Circuit Voltage (Voc): 24.12v
Fuse Rating: 15A
Dimensions: 1520mm long x 685mm x 35mm Frame (Black)
10 year product warranty (Return to Base)
10 year performance output guarantee.
Replaces conventional 100w, 105w, 110w, 120w, 130w, 140w, 145w, 150w, 160w, 180w, 190w, 195w, 200w and even 210w panels with newer (more advanced technology) and greater real world power output. Our testing has shown in many cases we can out perform a standard 250w conventional 2bb - 3bb mono / poly panel as a comparison.
This is the most advanced High Efficiency Small / Compact panel available in NZ today for RV / Van / Caravan / Bus systems.
This diagram below shows exactly HOW and WHY PERC MONO cells are different to standard MONO / POLY cells, due to their built in rear reflector, which allows the cell to collect more power in ALL light conditions (especially low light conditions).
