High Quality SOLAR PV 6mm Twin Core DC Cable (6mm2 per conductor)

$6.80 $12.00

Price is per meter, please enter the quantity of metres your wanting to purchase thanks.

New High Quality Black PV Solar Panel PVF1-F DC Round Flex Cable, BLACK, 6MM Diameter, TUV Approved for Europe and Australia / NZ also.

6mm TWIN CORE Solar Cable.

PV1-F cable is used for photovoltaic systems. This cable links photovoltaic panels to inverter. It is used for fixed installation outdoors or indoors.

Ideal for complete systems Grid Tie or Off Grid, or even a few panels on your motor home etc.


Info:
TUV approved
Dual wall insulation,electron beam cross-linked
Excellent resistance to UV,water,ozone,fluids,salt,genera­­l weathering
Excellent resistance to abrasion
Excellent flexibility and stripping performance

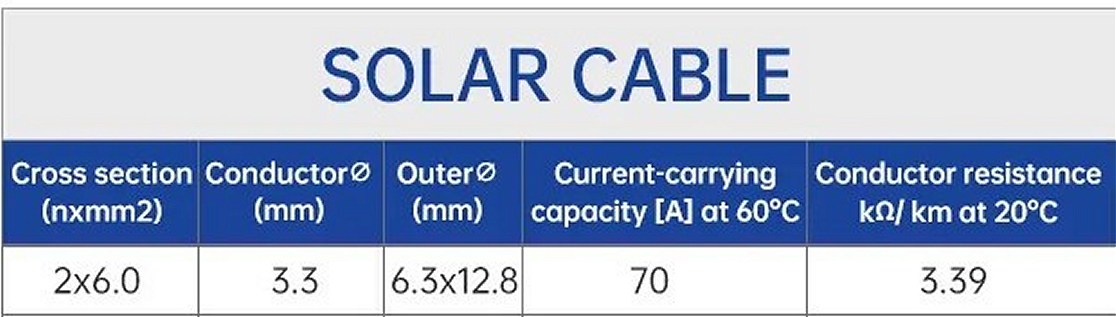

Specs:
•Size: 1x6mm  (Twin Core)
•Conductor: Flexible tinned copper Class 5 according to IEC 60228
•Insulation: Halogen Free Polyolefin
•Outer Sheath: Black Halogen free polyolefin, flame retardant, low toxicity
•Conductor flexibility: Flexible class 5
•Halogen free: IEC 60754-1
•Rated Voltage Uo/U (Um): 0.6/1 kV - 1000VDC
•Operating temperature, range: -40 to 90°C
•Max. conductor temperature in service: 120°C
•Short-circuit max. conductor temperature: 250°C
•Gases corrosivity: IEC 60754-2
•Smoke density: EN/IEC 61034-2
•Ozone resistance: Yes
•Weather resistance: Excellent
•Flame retardant: IEC 60332-1
•Fire retardant : C1, NF C 32-070


Physical properties:
•Temperature range:-40~+120degC
• Ambient temperature:-40~+90degC
• Design lifetime:25years for outside
• the smallest permissible bending radius:4xouter diameter
