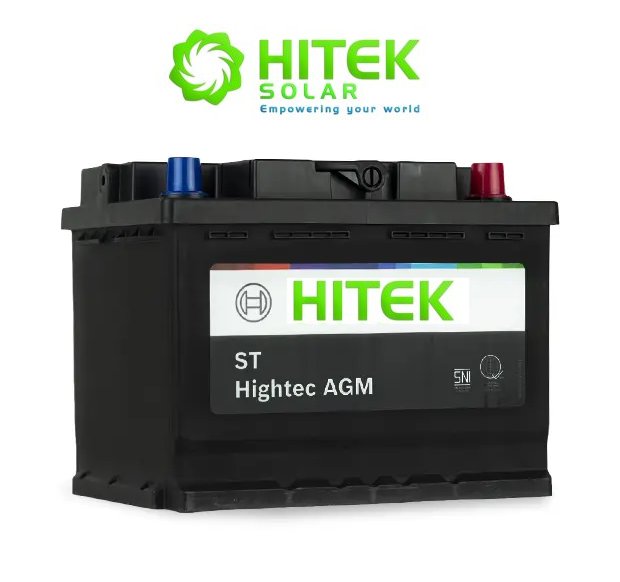

New 1 x 12v 60Ah Hitek Din LN Style
60Ah, 100 Min RC, 680A CCA


Specs:
12v 60Ah @C20 (at 20 hour discharge rating).
Weight: 19.5Kg  (Net Inc packaging when sending)
Size: 245mm long x 175mm width / deep x 190mm height.
Constant charge current: 12v 5-20A
Max Peak cranking discharge current: 680A (6 seconds)
Terminal: Standard Auto Post Terminals (SAE) DIN T1
Technology: AGM Start Stop Deep Cycle (with high charge acceptance)
Recommended Charge Voltage: 14.4v-14.7v
Warranty:  24 Month Return To Base Hardware Warranty (Pro-Rata)
Recycling:  Please contact Hitek Solar NZ and arrange return back at end of life.

Replaces:
Din55L / Din55LH / Din55LX / Din55Lhx / Rocket CMF55L-Din / XDin55MF / MF55 / Din55L / LN2 12v lead acid batteries and others the same size that are not listed also.

Applications:
Designed to be a direct drop in replacement (to replace existing 12v Lead Acid Battery) on many KIA EV6 (all EV6 Versions) and others that use a Din55 or CMF55L-DIN or LN2 battery from the factory or that is mounted in the vehicle already.

Gives a better and greater real world capacity than most factory Flooded Lead Acid / EFB batteries that come factory fitted in many Kia / Hyundai and Toyota Vehicles.

This Hightec AGM battery is engineered to deliver reliable power for vehicles with frequent start-stop operation and high electrical demands. Using advanced AGM (Absorbent Glass Mat) technology, it offers exceptional performance, durability, and efficiency, making it one of the leading battery technologies available today.

Designed to handle dynamic recharging and up to four times more charge and discharge cycles than conventional starter batteries, ST Hightec AGM meets the toughest requirements. It is ideal for start-stop systems with brake energy recuperation and for modern vehicles equipped with numerous electrical convenience features.

Key Features & Benefits

• Start-Stop Ready – Supports start-stop systems designed to reduce fuel consumption

• Sealed and Leak-Proof – 100% sealed construction for improved safety and reliability

• High Starting Performance – Delivers strong, consistent starting power

• Excellent Charge Acceptance – Fast recharging with strong cold starting capability

• Extended Service Life – Features a double-lid design to prevent water loss, high vibration resistance, and a durable polypropylene case

IMPORTANT NOTE WHEN FITTING TO KIA EV6:
Please note when fitting this battery into KIA EV6 Vehicle a small modification is needed during installation, mentioned below.

The Kia factory plastic shroud / tray trim cover over the 12v battery area under the bonnet often may need some small modification / cutting to enable it to fit back down correctly after this new battery is fitted due to a slight variance in physical size with this battery.  Sometimes the bottom casing flange may catch on the shroud / tray which may stop the battery fitting in perfectly without obstruction.  This may mean around 6mm of plastic may need to be shaved / trimmed off to let the battery drop perfectly in place correctly, so please be aware of this.  It usually takes 5-10 mins extra during installation at your end because of this.  Sometimes there may be a small plastic clip / tab on the underside of the factory cover that may need to be cut, trimmed or modified so it clears the battery handle base without binding.

Other Vehicles that can often use this 12v battery:

• Kia EV9

• Kia Niro EV / PHEV 2022+ SG2 Generation

• Hyundai Ioniq 5 & Ioniq 6

• Hyundai Kona EV (2023+ SX2 Second Gen)

• VW ID.4 and ID.5  Ex-Japan Import and NZ New Imports

• Volvo XC40 Recharge and C40 Recharge EV & PHEV

• Peugeot e-208 / e-2008 & Opel Mokka-e


• Toyota Rav4 Hybrid 2019+ XA50


• Toyota Camry Hybrid 2018+ AXVH70


• Lexus NX350h / RX450h (newer generations)


Note:  Please check your physical battery size dimensions and terminal placement positions before ordering as we do NOT accept returns if you order this battery and then find it doesnt fit your vehicle, so ALWAYS measure your existing battery dimensions (length + width + height) and compare to our measurements listed on this page to ensure they match up before placing your order.

Note:  We can ONLY supply this battery within NZ  (cannot send / ship or offer overseas).
